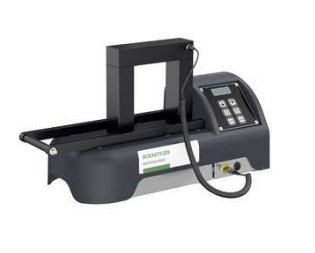

LAGER VÄRMARE HEATER 50 BASIC 230V

U 230 V Operating voltage
f 50 - 60 Hz Frequency
P 3 kVA Power consumption
I 13 A Current rating
240 °C/464 °F Max. heating temperature
0 - 99 min Heating time
Digital Display
1 Magnetic probe, quantity
≈m 24,2 kg text.product.weight
Functions
+ Temperature hold
+ Automatic demagnetization, <2A/cm
– Swivel arm
– Log function
– Delta-T control
+ Temperature control
+ Time control
– Temperature and time control
– Temperature and speed control
+ Overheating protection
+ Automatic power reduction
+ Support for horizontal heating

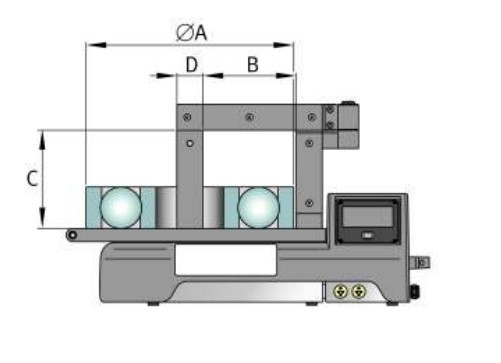

Dimensions
600 mm Length HEATER
226 mm Width HEATER
274 mm Height HEATER
B 120 mm Pole spacing, horizontal
C 130 mm Pole height
D 40x50 Pole surface (mm²)
Workpiece to be heated
mb 50 kg Max. workpiece weight
10 / 65 Min. inner diameter workpiece vertical/horizontal (mm)
A 400 mm Max. outer diameter workpiece
125 mm Max. workpiece width, horizontal heating
Additional information
3 Yokes included, quantity
7x7, 14x14, 40x50 Yokes included, cross section (mm²)
